This page walks through documented problems with submerged-electronic water phantoms — taken directly from a 2026 white paper written by an independent board-certified medical physicist (Semon-Pomposelli, M.S., DABR) — and maps each one to DoseView 3D's design response. Every claim below is sourced; the whitepaper PDF and the Akino et al. 2014 peer-reviewed comparison are linked at the bottom.
Linac commissioning and annual QA are "two of the most resource-intensive responsibilities in clinical medical physics." They require dedicated vault access — planned in advance, executed within defined windows — and are carried out under the dual pressure of dosimetric precision and institutional scheduling constraints. AAPM TG-106 defines the scope of what has to be acquired in that window: PDDs, in-plane and cross-plane profiles, and output factors across photon and electron energies, with multiple detectors selected by depth and field size.
Sources: Semon-Pomposelli 2026, §1 · Das IJ et al., AAPM TG-106, Med Phys 35(9):4186–4215 (2008).
None of these is rhetorical. Each is paraphrased from a published source — either the independent workflow white paper or the peer-reviewed four-vendor comparison study — and cited inline.
Auto-levelling sensors and bundled software ecosystems "often introduce additional failure modes, extended troubleshooting procedures, and significant user retraining requirements, without proportionally reducing the physicist's setup burden."
Semon-Pomposelli 2026, §1 (Abstract)
"An automated levelling sequence that completes without error can still yield a subtly unlevel tank, particularly if the water sensor functionality has started to degrade." Sensors do not catch cable tension artefacts or detector verticality.
Semon-Pomposelli 2026, §3.1
"The clinical cost of a short setup that produces asymmetric or offset data — requiring the scan sequence to be repeated — substantially exceeds the time investment of the deliberate manual verification protocol."
Semon-Pomposelli 2026, §3.1
Bundled QA modules and inherited interface conventions create "cognitive load that contributes to parameter entry errors and setup delays" — particularly with software used only once or twice each year.
Semon-Pomposelli 2026, §5.1
"The application of effective point of measurement (EPOM) corrections… represents a material source of manual error in beam data acquisition and dose conversion, particularly in time-compressed sessions."
Semon-Pomposelli 2026, §5.2
"Moisture ingress into submerged control components… typically requires factory service and produces extended scan-unavailability periods."
Semon-Pomposelli 2026, §6.1
Four-vendor head-to-head: variability beyond dmax of 0.08 % (DoseView 3D) to 0.16 % (PTW MP3); in the build-up region differences run several percent across vendors. The dispersion is in the tank, not in the operator.
Akino et al. 2014, J Appl Clin Med Phys 15(4):251–258
What does a tank look like when each of those documented failure modes was engineered out, rather than worked around?
Each row below pairs a failure mode from above with the design response that addresses it. The response sentences are paraphrased from the same independent whitepaper, so the mapping is auditable by anyone who reads the source.
All critical drive electronics and motion-control components are kept above the waterline. Only the mechanical scan arms sit in the tank — the components most vulnerable to corrosion stay dry.
Semon-Pomposelli 2026, §6.1 (zero-submerged-electronics design)

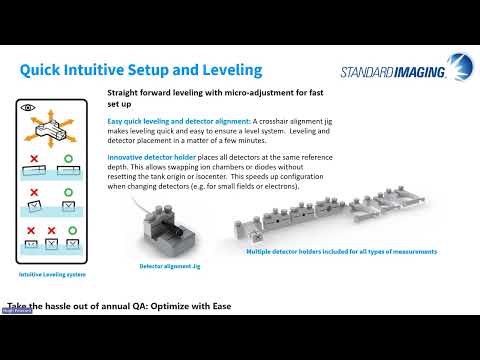

Three-point levelling with the Origin Crosshair Alignment Jig — visual indication marks at the water surface and built-in bubble levels — designed for explicit physicist verification at each stage, not blind automation.
Semon-Pomposelli 2026, §3.2 and §4.2
The published 7-step setup workflow (pre-fill reservoir, system init, tank alignment, fill + leveling verification, detector positioning, visual confirmation, Find Center) "has yielded a materially lower rate of scan repetition due to setup-induced artefacts" — scan-ready in ~25 minutes (15 setup + 10 fill).
Semon-Pomposelli 2026, §3.2 and §7
Persistent scan queues — built once, saved, re-used on subsequent years. The queue becomes the institutional memory. "Annual QA from a software re-learning event into a validation event."
Semon-Pomposelli 2026, §5.1 and §6.3
The Dose Convert function automatically retrieves chamber information and applies the appropriate EPOM shift to acquired data without manual input.
Semon-Pomposelli 2026, §5.2
Same architectural choice — only the mechanical arms operate in water; control electronics never enter the fluid path. The primary moisture-ingress failure mode of competing tanks is engineered out.
Semon-Pomposelli 2026, §6.1
In the Akino 2014 four-vendor study, DoseView 3D recorded the lowest inter-variability of the cohort deeper than dmax: 0.08 % ± 0.12 %, ahead of Sun Nuclear 3D Scanner (0.13 %) and PTW MP3 (0.16 %). The result is in the literature you can hand to a procurement committee.
Akino et al. 2014, J Appl Clin Med Phys 15(4):251–258, PMC5875503

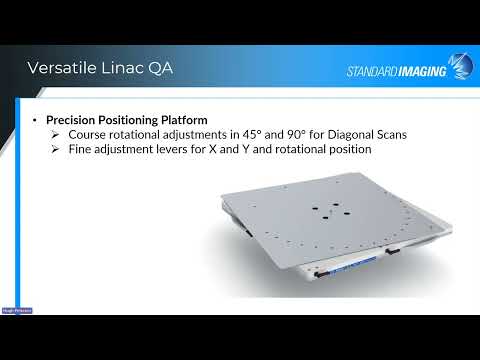

Two Manufacturer webinars walking the same workflow point-by-point. Click a tile to play in-page.
