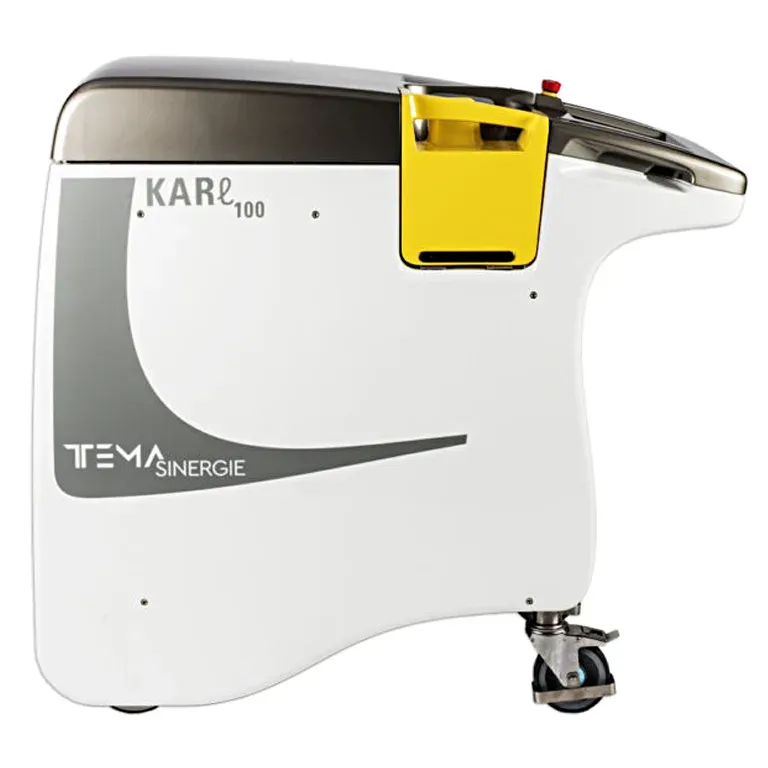

KARL100™ Multi-Tracer Dispenser + InjectorClass A Dose Administration System
One Class A dispenser, seven isotopes, portable 1 kg shielded mini-injectors. Multi-tracer-compatible from F-18 PET right through to Ra-223 alpha therapy — radiopharmacy and the injection room, joined up.
Key Features
- Class A radiopharmaceutical dose administration system ((the manufacturer spec))
- Multi-tracer compatible — supports 18F, 11C, 177Lu, 90Y, 223Ra, 68Ga, 64Cu ((the manufacturer spec), verbatim isotope list)
- Covers both PET diagnostic isotopes (F-18, C-11, Ga-68, Cu-64) and radionuclide-therapy / theranostic isotopes (Lu-177, Y-90, Ra-223)
- Draws individual patient doses from multi-dose vials inside a Class A shielded environment
- Outputs portable 1 kg shielded mini-injectors — light enough to carry to each injection room
All Features
- Class A radiopharmaceutical dose administration system ((the manufacturer spec))
- Multi-tracer compatible — supports 18F, 11C, 177Lu, 90Y, 223Ra, 68Ga, 64Cu ((the manufacturer spec), verbatim isotope list)
- Covers both PET diagnostic isotopes (F-18, C-11, Ga-68, Cu-64) and radionuclide-therapy / theranostic isotopes (Lu-177, Y-90, Ra-223)
- Draws individual patient doses from multi-dose vials inside a Class A shielded environment
- Outputs portable 1 kg shielded mini-injectors — light enough to carry to each injection room
- Multiple infusions can be prepared and run simultaneously across rooms ((the manufacturer spec))
- Bridges the hot lab and the injection room — same equipment handles dispensing and administration
- Marketed by (the manufacturer )as the most complete and safest Class A dose administration system on the international market
- 200 KARL100 units installed around the world (manufacturer-published figure)
- Has a dedicated microsite: karl100.com
- Available through Saxsons Group with full AERB import documentation
Technical Specifications
| Type | Multi-tracer Class A radiopharmaceutical dispenser + patient injection system |
| Class | Class A clean-air environment ((the manufacturer spec)) |
| Isotopes supported | 18F, 11C, 177Lu, 90Y, 223Ra, 68Ga, 64Cu (verbatim the manufacturer list) |
| Tc-99m support | Not stated on the (the manufacturer )public product page — confirm via brochure if required |
| Output format | Portable shielded mini-injectors, ~1 kg each ((the manufacturer spec)) |
| Workflow position | Hot lab dispenser → mini-injector → injection room |
| Simultaneous workflow | Multiple infusions can be prepared and run simultaneously across rooms ((the manufacturer spec)) |
| Detailed shielding spec | Not published on (the manufacturer )public page — confirm via brochure (URL exposed below) |
| Dimensions / weight | Not published on (the manufacturer )public page — confirm via brochure |
| Standards alignment | Class A clean-air environment claim (the manufacturer marketing language); no explicit GMP / CE / IEC numbers on the public page |
| Microsite | https://www.karl100.com/ |
| Install base | 200 KARL100 units installed worldwide (the manufacturer figure) |
| Indian regulatory path | AERB import + nuclear-medicine facility licensing (radiopharmacy + administration) |
Applications
One device for the dispense → carry → inject workflow, across seven isotopes
Multi-tracer PET radiopharmacy
Same KARL100 dispenses F-18, C-11, Ga-68 and Cu-64 PET tracers from multi-dose vials. The hot-lab footprint stays compact even as the tracer menu grows.
Theranostic therapy administration
Lu-177 PSMA / DOTATATE, Y-90 radioembolisation, and Ra-223 alpha-therapy doses can be dispensed and delivered through the same Class A system. One device covers the diagnostic-and-therapy bridge that defines a modern theranostic centre.
Multi-room injection workflow
The portable 1 kg shielded mini-injector travels from the hot lab to whichever injection room is open — multiple infusions in parallel without duplicating the central dispenser.
Hot-lab + injection-room bridge
KARL100 replaces the two-step "dispense in the hot lab, then transport in a shielded carrier" workflow with a single integrated system. The radiopharmacist and the clinical-administration team share one equipment surface.
Class A clean-air environment
Per the manufacturer, the dispensing environment is Class A — the cleanroom class the European pharmaceutical rules expect for aseptic radiopharmaceutical preparation.
Indian theranostic-centre fit
For an Indian nuclear-medicine department adding Lu-177 or Y-90 therapy capacity, KARL100 is a single capital decision that covers dispensing AND administration for the new isotope mix.
Why KARL100?
F-18, C-11, Ga-68, Cu-64, Lu-177, Y-90, Ra-223 — verbatim from the (the manufacturer spec). A theranostic centre running both PET diagnostics and radionuclide therapy doesn't need two parallel dispensing chains. KARL100 covers all seven.
The portable shielded mini-injector is light enough to hand-carry from the hot lab to each injection room. Multiple parallel infusions become possible without duplicating the central dispenser — radiopharmacy stays centralised, administration scales out.
A meaningful reference base for an Indian buyer evaluating multi-tracer dispensing. The device exists, ships, and works clinically across 200+ sites globally — including a recent install at Chedis Mahmoudi Hospital, a landmark PET centre in Northern Africa.
Catalogs & Resources
(the manufacturer )the manufacturer page, the karl100.com microsite, the brochure PDF and the Manufacturer Vimeo demo.
KARL100 — Manufacturer product page
Manufacturer page with the KARL100 specification, related products and the gated brochure form.
KARL100 — dedicated the manufacturer microsite
Standalone marketing site for KARL100 with longer-form positioning content.
KARL100 — Manufacturer brochure (PDF, 2024)
KARL100 product brochure (URL exposed in the page form; gated by the download modal).
KARL100 — Manufacturer product demo (Vimeo)
Manufacturer product demonstration of the KARL100 dispenser + injector workflow.
KARL100™ Multi-Tracer Dispenser + Injector
More for this product
Each card opens a focused post for a specific specialty — peer-reviewed evidence and clinical workflow, written for the persona you select.
FAQ
Multi-tracer dispensing + injection — questions we hear from Indian theranostic NM teams
Why the dispenser + injector combination closes the hot-lab-to-injection-room gap, which 7-isotope diagnostic and theranostic workflows it covers, why 1 kg mini-injectors reduce operator dose, and how it sits inside the AERB dossier.
Q.What workflow gap does a combined dispenser + injector fill that separate devices cannot?
A traditional hot-lab dispenses the dose into a shielded syringe, and the technologist walks that syringe to the injection room where the patient is waiting on the couch. Every metre of that walk adds transit dose to the operator and consumes activity to decay. On a theranostics day handling Lu-177 or Ga-68 at high patient activities, the transit exposure is not trivial. KARL100 is a Class A shielded dispenser plus a paired 1 kg mini-injector — the same shielded chain that dispenses the dose delivers it into the patient without breaking containment between hot lab and injection room.
Q.Which isotopes and workflows does KARL100 handle?
KARL100 is a Class A 7-isotope dispenser + injector: F-18 (PET/FDG), Ga-68 (PSMA / DOTATATE), Lu-177 (PRRT / PSMA / DOTATATE therapy), Y-90 (microspheres / RIT), Ra-223 (Xofigo bone metastasis), Tc-99m (SPECT), I-131 (thyroid ablation and therapy). A single platform covers the diagnostic PET/SPECT programme AND the theranostic / therapy programme.
Q.Why 1 kg mini-injectors instead of a single central injector?
The 1 kg mini-injector is a decentralised model — one small shielded injector at the patient couch instead of a central injector connected by long tubing. The patient dose travels a short shielded path from the mini-injector head into the peripheral cannula; the operator stands behind the shielded injector body during the push. Extremity dose per injection drops sharply compared to a central-injector-plus-tubing model, especially for high-activity Lu-177 therapy pushes.
Q.Which regulatory framework does KARL100 sit inside?
KARL100 is a Class A GMP-grade dispenser under EU GMP Annex 1 aseptic manufacturing plus an injection-room device under the AERB Safety Code for Nuclear Medicine Facility. The two sides of the workflow — dispensing and administration — are unified in one AERB documentation dossier, which simplifies the facility licensing path for a new theranostic NM programme.
Q.How is KARL100 supplied and supported in India?
KARL100 is distributed by Saxsons Group. Supply covers the dispenser + mini-injector platform, per-isotope configuration for the theranostic programme in place at the site, and the AERB Safety Code documentation dossier the department needs for the AERB site approval. Saxsons handles the CDSCO medical-device import registration, installation and applications training across the Indian NM network.
KARL100 Multi-Tracer Dispenser + Injector supplier in India — Saxsons Group
Saxsons Group has supplied nuclear medicine equipment to over 1,000 Indian hospitals since 1988. Every consignment of KARL100 Multi-Tracer Dispenser + Injector ships with cold-chain logistics, AERB import documentation, CDSCO registration references and a Certificate of Analysis delivered before dispatch — the paperwork your radiation-safety and procurement teams need, pre-assembled.
- Nationwide delivery footprint — every metro and tier-2 city in India, scheduled to your treatment / procedure calendar.
- AERB & CDSCO documentation — import licence, radiation-safety paperwork and RSO briefing pre-assembled for the audit file.
- 40+ years in Indian oncology — long-standing supply relationships with AIIMS, Tata Memorial, and hundreds of tertiary-care centres.
- Single point of accountability — one purchase order, one delivery contact, one after-sales team across the whole product family.
Also supplied by Saxsons Group across India
Add multi-tracer Class A dispensing + injection to your nuclear-medicine department
Contact Saxsons Group for pricing, theranostic-centre KARL100 configuration, demo arrangement, AERB import documentation and installation support for the KARL100 multi-tracer dispenser + injector.
