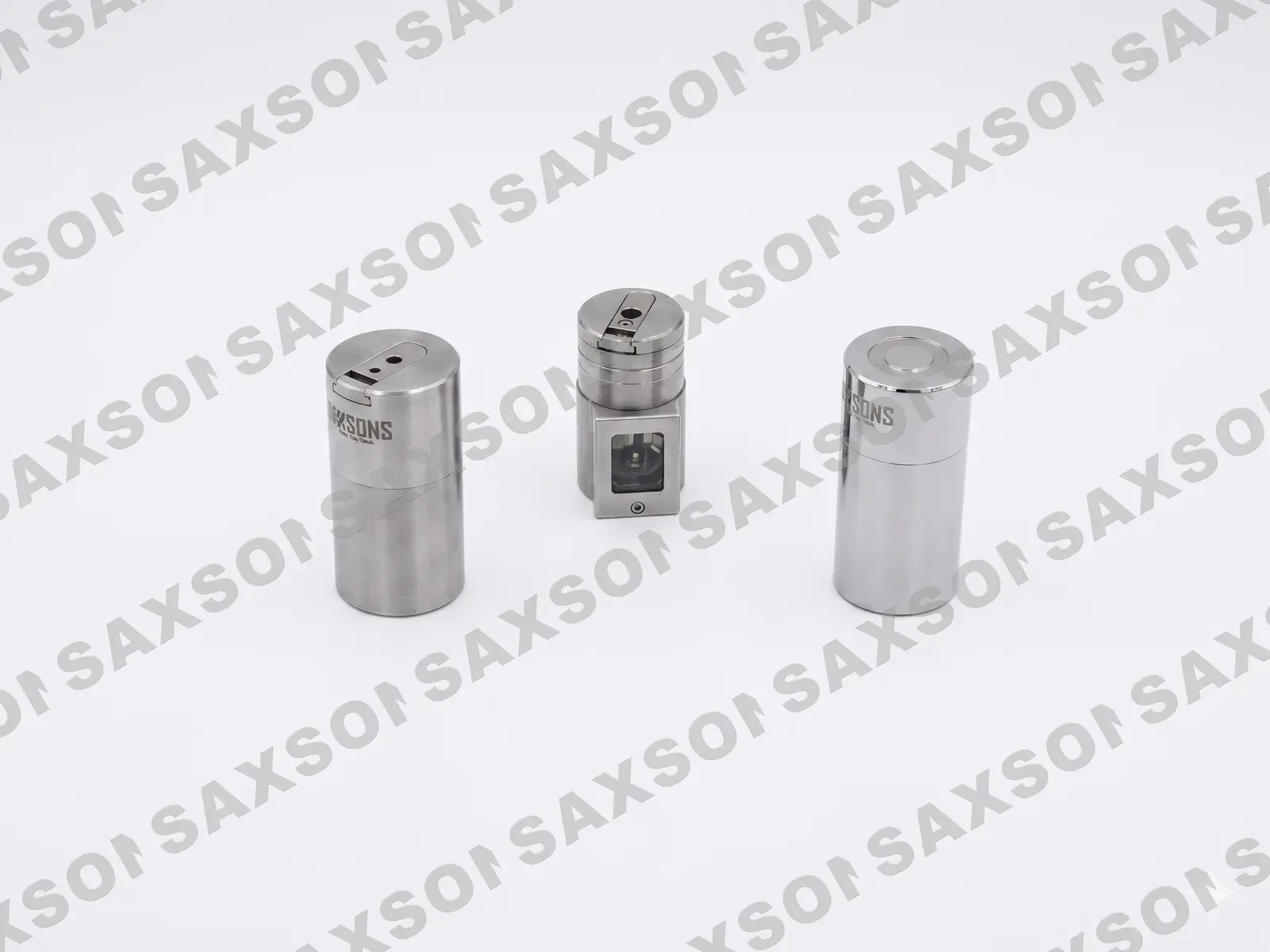

Saxsons own-brand lead vial shield family — the workhorse pot of the radiopharmacy hot lab. Seven shielding tiers (6 / 8.5 / 9.5 / 10 / 12 / 30 / 40 / 50 mm Pb) cover the whole NM activity spectrum: 6 mm for Tc-99m, 12 mm for I-131, 30 mm for routine PET and 50 mm for high-activity PET / Lu-177 theranostic prep. SS-202 outer with optional lead-glass viewing window and engraved calibration scale. Magnetic top-cap closure on PET tiers for one-touch needle access. Designed and manufactured in India in an ISO 9001 / ISO 13485 approved plant.
| Brand / build | Saxsons own-brand — manufactured in India by Saxsons Healthcare Pvt. Ltd., ISO 9001 / ISO 13485 approved plant |
| Shielding material | Lead — high-density Pb shielding; Lead–Zinc alloy variant in the 8.5 mm tier; Lead + Perspex hybrid for β/γ work |
| Lead shielding tiers | 6 mm · 8.5 mm (Pb-Zn) · 9.5 mm · 10 mm · 12 mm · 30 mm · 40 mm · 50 mm — operator-selected per workflow |
| Attenuation @ 140 keV (Tc-99m) | 6 mm Pb ≈ ~22 HVL ≈ > 99.9999 % attenuation |
| Attenuation @ 364 keV (I-131) | 12 mm Pb ≈ ~4 HVL ≈ ~94 % attenuation |
| Attenuation @ 511 keV (F-18 / Ga-68) | 30 mm Pb ≈ ~7 HVL ≈ > 99.2 % attenuation; 50 mm Pb adds another ~3.5 HVL for high-activity work |
| Outer chassis | SS-202 (standard, dispensing + storage); MS painted (transport-pot tier) |
| Inner geometry | Lead-bored cavity sized to the vial (15 / 30 / 32 / 68 cc); custom vial-geometry inserts available |
| Closure styles | Slide Lock · Thread Turn Lock · Pin Turn Lock · Thread + Magnetic Top Cap · Thread + Rotating Cap |
| Viewing window | Optional side lead-glass window with engraved calibration scale; lead-equivalent matched to surrounding Pb thickness |
| Vial capacity range | 15 cc · 30 cc · 32 cc · 68 cc — covers SPECT cold-kit, PET unit-dose, Lu-177 theranostic and high-volume storage vials |
| Engraving | Saxsons brand mark + shield-tier designation engraved on the chassis |
| Compatibility | Standard NM hot-lab dispensing geometries; pairs with Saxsons Dose Cabinet, Lead-Lined Fume Hood and syringe-shield lines |
| Compliance framework | AERB Safety Code for Nuclear Medicine Facility — extremity-dose protection; ICRP Publication 103 dose limits; ISO 9001 / ISO 13485 |
| Documentation | Per-batch lead-thickness certificate, lead-glass thickness certificate (where fitted), ISO quality-record pack |
Six worked dispensing workflows the family covers — pick the tier for the isotope
6 mm Pb tier in SS-202 outer with optional lead-glass viewing window. Daily MDP, MIBI, ECD, MAG3 and DMSA dispensing. Slide-lock closure for fast vial access; the engraved calibration scale lets the operator read the vial volume through the window before withdrawing the dose.
12 mm Pb tier for I-131 (364 keV) capsule decant and bulk oral-solution withdrawal. Steps up from the SPECT tier because I-131 needs ~4 HVL of Pb at 12 mm vs the ~22 HVL the SPECT tier delivers at 140 keV.
30 mm Pb tier with thread + magnetic top cap. Routine FDG dispensing at 511 keV; magnetic closure gives one-touch needle access for the high-throughput PET line. Pairs with the Saxsons Dose Cabinet on the same bench.
50 mm Pb tier for high-activity multi-dose source vials and Lu-177 (DOTATATE / PSMA-617) theranostic dispensing. Same magnetic top-cap closure; ~3.5 HVL extra over the 30 mm tier.
40 mm Pb transport pot with pin-turn lock. Positive locking for tamper-evident transit; MS-painted outer keeps the transport-only build cost lower than the dispensing SS-202 outer.
6 mm Pb + 6 mm Perspex inner layer. The Perspex absorbs the β before it reaches the lead; the lead absorbs the bremsstrahlung-secondary γ. Pairs with the larger 68 cc capacity for high-volume β/γ work.
At 140 keV (Tc-99m), 6 mm of lead is roughly 22 half-value layers — over six orders of magnitude attenuation. Beyond this tier, additional Pb adds chassis weight without meaningful dose-rate benefit; 6 mm is the engineered match between attenuation and ergonomics for routine SPECT dispensing.
At 511 keV (F-18 / Ga-68 annihilation), 30 mm of lead is roughly 7 half-value layers — > 99.2 % attenuation. The 50 mm tier adds ~3.5 HVL more for high-activity multi-dose source-vial dispensing and Lu-177 theranostic work where dose-rate at the operator surface matters more.
A magnetic top cap on the needle hole gives one-touch open / close. On a 30-dispense PET shift, the cumulative cap-cycle time savings are real — but the larger benefit is the operator never has the cap fully off the shield, so the per-dispense exposure stays at the shielded surface even mid-dispense.
Variant matrix
Eight worked dispensing configurations across seven lead-shielding tiers and five closure styles. The per-workflow build sheet matches the tier to the isotope-energy ladder, the closure to the dispensing-line throughput, and the Accessories Matrix to the operator-ergonomics expectation.
Use-case configurations
| Use case | Pb tier | Closure | Vial | Notes |
|---|---|---|---|---|
| SPECT dispensing (Tc-99m, MDP / MIBI / ECD / MAG3 / DMSA) | 6 mm Pb | Slide lock | 30 cc | Routine cold-kit dispensing tier; optional lead-glass viewing window |
| SPECT dispensing with lead-glass window | 6 mm Pb | Slide lock | 32 cc | Engraved calibration scale; operator reads vial volume without breaking shielding |
| I-131 therapy (oral capsule / solution) | 12 mm Pb | Slide lock | 30 cc | Steps up to 12 mm for the 364 keV I-131 photopeak; pairs with shielded carrier for transport to therapy room |
| PET dispensing (F-18 / Ga-68) | 30 mm Pb | Thread + magnetic top cap | 30 cc | Magnetic quick-release on the needle hole; ergonomic for the high-throughput PET line |
| High-activity PET / Lu-177 theranostic | 50 mm Pb | Thread + magnetic top cap | 30 cc | High-activity multi-dose source-vial dispensing; brings dose-rate at the operator surface down further |
| Storage (residual-activity vials) | 9.5 / 10 mm Pb | Thread turn lock | 30 cc | Post-dispense storage of residual-activity vials before decay or return |
| Transportation lead pot | 40 mm Pb | Pin turn lock | 30 cc | Transport-grade pot for inter-room / inter-site transit; positive locking mechanism |
| Beta–gamma hybrid (Y-90, Lu-177 β contribution) | 6 mm Pb + 6 mm Perspex | Thread turn lock | 30 / 68 cc | Perspex / acrylic inner layer attenuates β before the lead absorbs the bremsstrahlung-secondary gamma |
Closure styles
| Slide Lock | SPECT routine dispensing; fast vial access; pairs with the 6 mm Pb workhorse build |
| Thread Turn Lock | Storage tier and β/γ hybrid; positive locking for higher residual activity |
| Pin Turn Lock | Transport pot; tamper-evident positive locking for inter-site transit |
| Thread + Magnetic Top Cap | PET 30 mm + 50 mm builds; magnetic quick-release on the needle hole for high-throughput dispensing |
| Thread + Rotating Cap | Dispensing tiers where the operator adjusts the dispense-needle position around the vial geometry |
Accessories Matrix
| Lead-glass viewing window with engraved calibration scale | Operator reads vial volume through the shield; no open-close cycle per dispense; matched lead-equivalent so the window doesn't become the weak point |
| Magnetic top cap on the needle hole | One-touch open / close for needle access; reduces per-dispense extremity exposure on PET high-throughput lines |
| Saxsons brand mark + size designation engraving | Inventory tracking; prevents wrong-shield pick-up at the dispensing bench |
| Carry handle (transport-pot variant) | Two-handed lift on the 40 mm transport pot; positioned for balanced load with vial in place |
| Anti-slip base | Stable footprint on the dispensing bench; resists vibration from adjacent equipment |
| Calibration certificate per consignment | Per-batch lead-thickness certificate (and lead-glass thickness certificate where fitted); AERB inspection-ready documentation |
| Custom vial-geometry inserts | Bespoke insert when the vial geometry differs from the standard PET / SPECT range; commissioned per-customer at site IQ |
| ISO 9001 / ISO 13485 quality-record pack | Per-batch quality records ship with every consignment; supports the AERB inspection dossier and the GMP file |
Per-batch lead-thickness certificate and lead-glass thickness certificate (where fitted) ship with every consignment. Custom vial-geometry inserts and bespoke engraving are configurable on request and locked at site IQ / OQ.
AERB + ICRP + NIST references that anchor lead vial-shield selection. Contact Saxsons Healthcare for per-isotope tier selection, vial-geometry confirmation and India pricing.
Indian regulatory framework for nuclear-medicine facility licensing including hot-lab shielding and extremity-dose-monitoring expectations.
Current ICRP framework defining the 500 mSv/year occupational extremity-dose limit referenced by the AERB dose-monitoring programme.
Authoritative reference for lead photon-attenuation coefficients at 140 keV (Tc-99m), 364 keV (I-131), 511 keV (F-18 / Ga-68) and other NM energies.
Saxsons Lead Vial Shield
Each card opens a focused post for a specific specialty — peer-reviewed evidence and clinical workflow, written for the persona you select.
Contact Saxsons Healthcare Pvt. Ltd. for use-case + Pb-tier + closure + viewing-window configuration, per-batch certificate documentation and pairing with the Saxsons Dose Cabinet, Lead-Lined Fume Hood and syringe-shield lines — designed and manufactured in India.
